Thorens TD 124 50 HZ motor pulley
Please check the version indicated for your country before purchasing
The 50 Hz version has an external diameter of approximately 36 mm

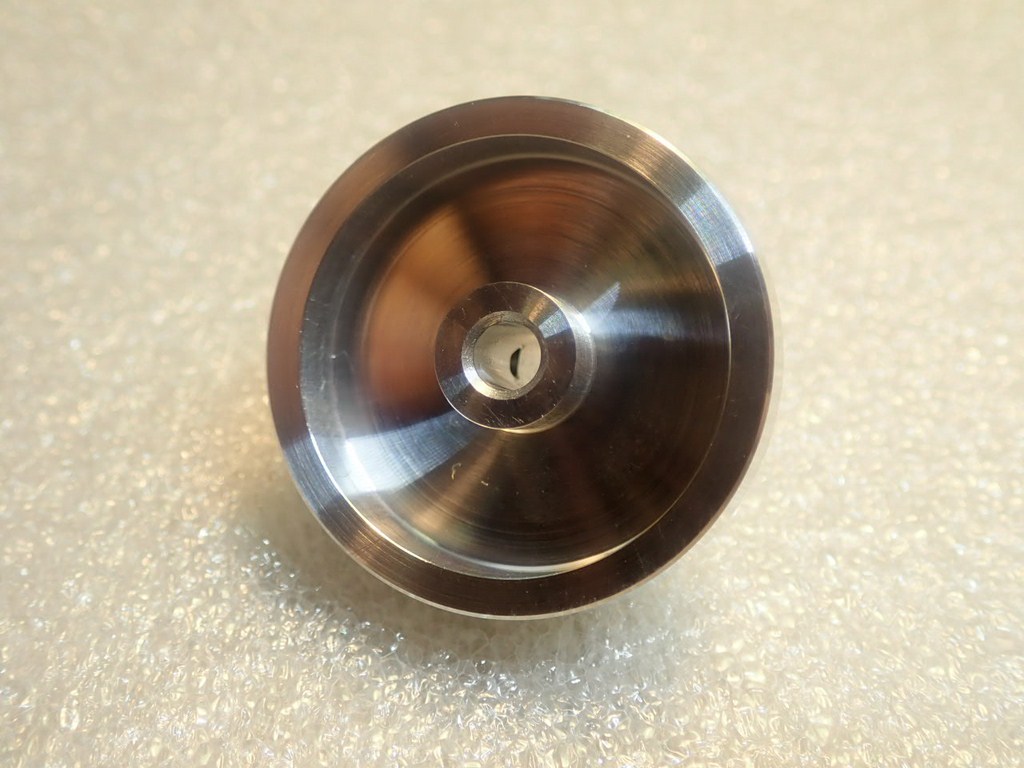

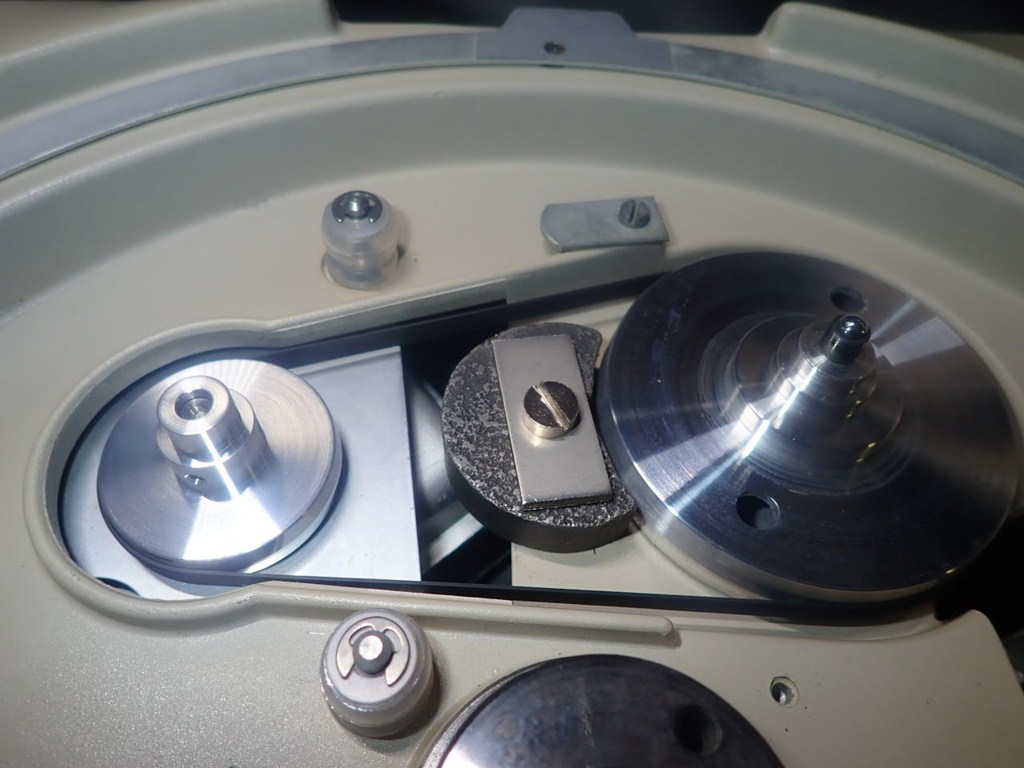

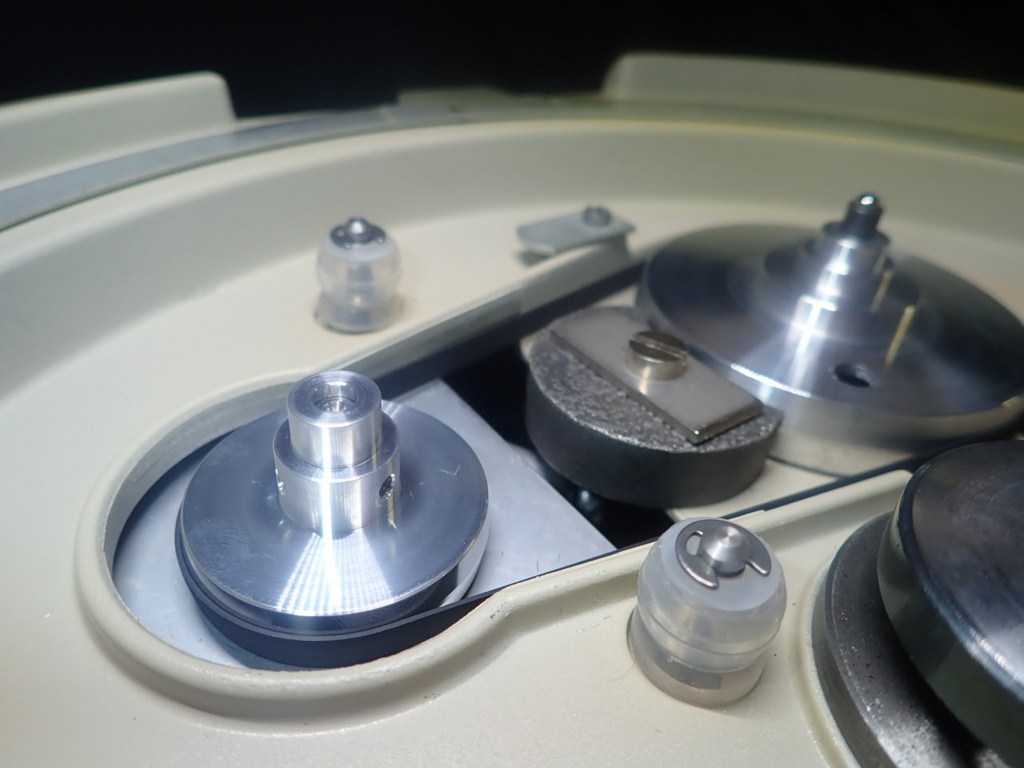

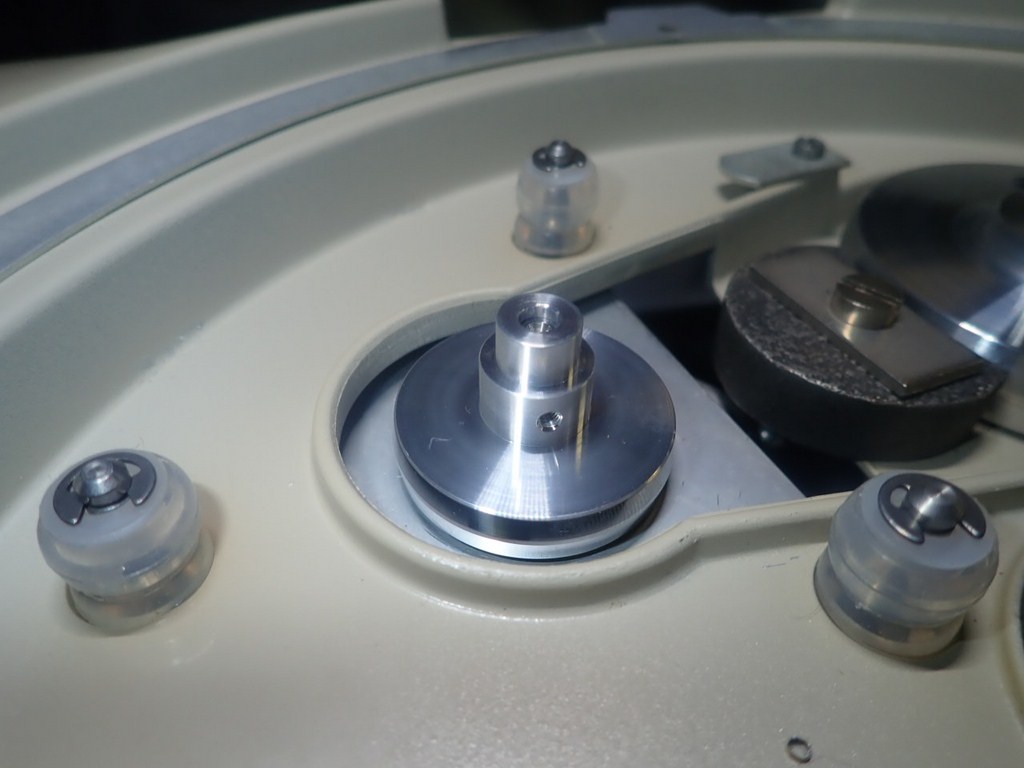

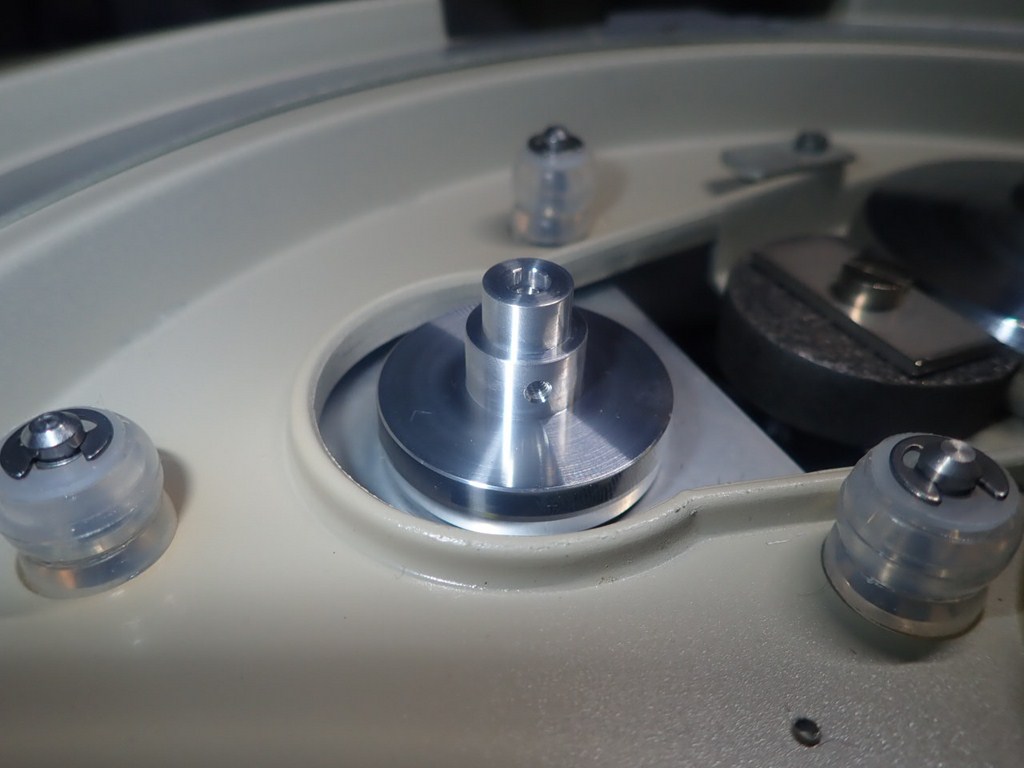

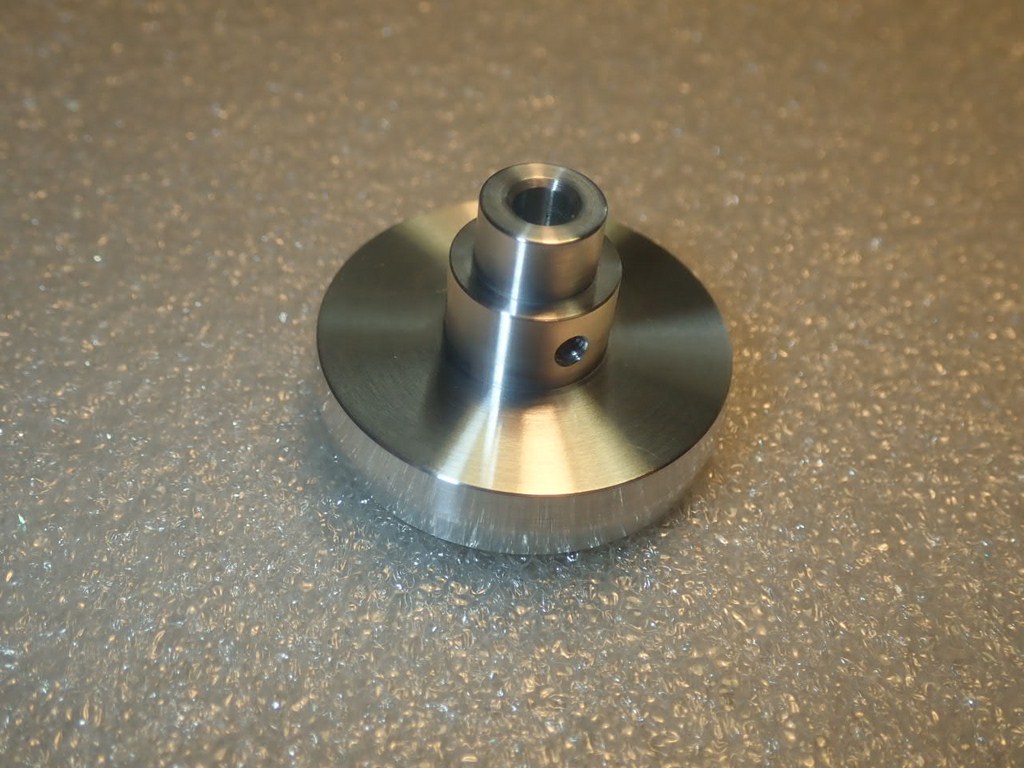

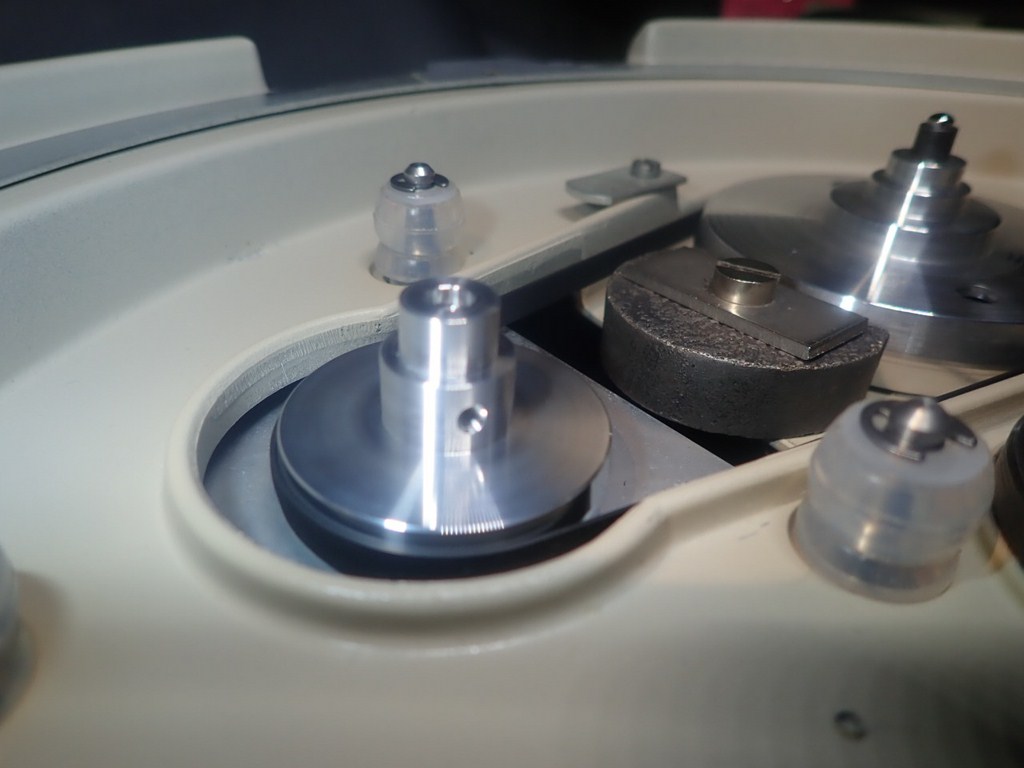

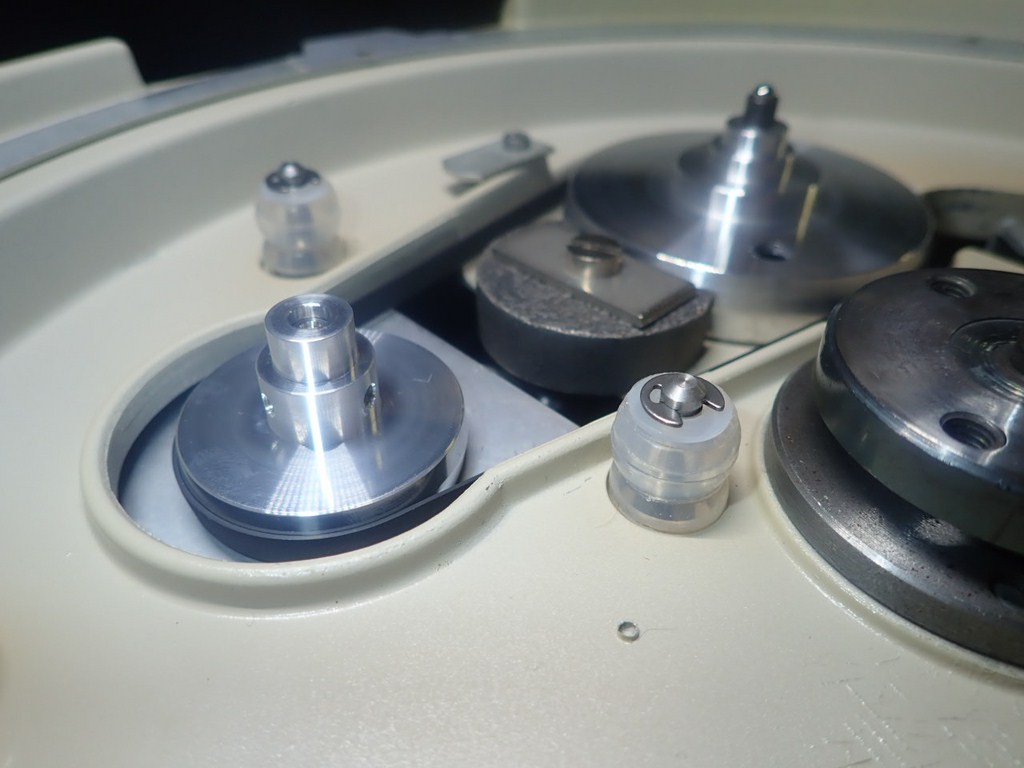

Audiosilente is pleased to introduce the new pulley for the Thorens E50 motor: TD 124 121 135 184 224. It’s also compatible with the Papts motor.
Made from Avional aluminum using CNC machines, it has been substantially upgraded compared to the original.
The original pulley was in fact produced in a single piece for both 50Hz and 60Hz, with a process involving two reworkings of the piece, resulting in the pulley being balanced at the end of production.
The new Audiosilente pulley has been separated into two distinct pieces, one for 50Hz and one for 60Hz. This has made it possible to manufacture the piece in a single production process, so that the pulley is perfectly balanced once it leaves the machining center.
In addition, the resulting weight reduction has reduced the vibrations induced by the pulley itself.
The pulley is secured with three grub screws positioned at 120 degrees.
We supply 3 slotted M3 grub screws + 3 hexagonal M3 grub screws for a 1.5 mm Allen key (not supplied).
The user can therefore choose according to their preference.
The internal diameter of the bore has a tolerance of only 0.005 mm with respect to the motor shaft size.
The 50 Hz version has an external diameter of approximately 36 mm.
Please check the version indicated for your country before purchasingThis precision component, machined from avional aluminum with fine sandblasting and light gray anodizing, centers the top platter and is designed to sit flush with its surface enabling the use of your preferred turntable mat in both Thorens 124 Series 1 and 2.
The shape of the adapter at the bottom follows the curvature that occurs inside the center of the aluminum top platter. The bushing is made of brass and ensures smooth operation with the correct tolerance.
A perfect complement to the upper platter is the isostatic graphite mat available in sizes of 5 -6-8 mm. The ideal size is 5 or 6 mm. The graphite mat, among other benefits, includes the reduction of the cartridge magnetic pull toward the heavy iron platter.
It is useful to point out that graphite is an isotropic material so it has the ability to dissipate vibrations in all directions. With the addition of a graphite mat you will have a much more controlled bass and greater detail in the higher frequency range.
The adapter comes with 3 M3 screws, allen wrench not included.
Please note that the round plate attached to the bottom of the Thorens top platter (not included) is required for installing our device.
We recommend mounting the centering adapter with loose screws. Then place the upper platter on the Thorens 124 platter and proceed to tighten the screws progressively. This way you will have perfect flatness of the assembly.
By Audiosilente.
